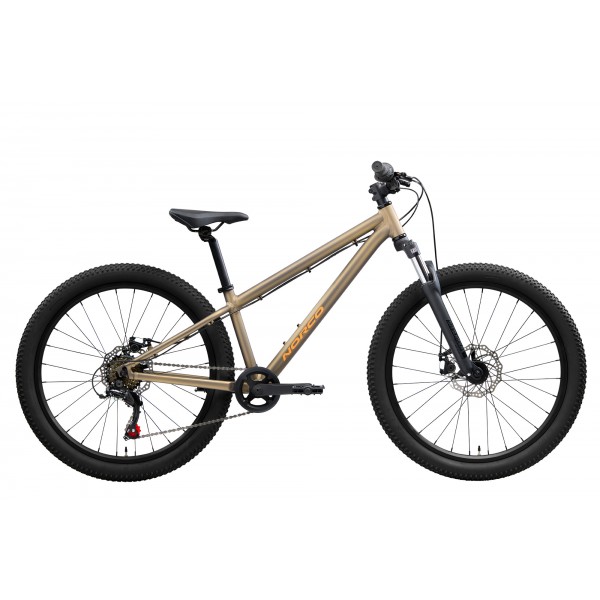

Norco Storm 24

Cadre: Aluminum, 9x135mm QR, 24"

Fourche: SR Suntour XCT Coil w/Soft Spring and Preload, 80mm, 9X100 QR

Transmission

Manette Arrière: Shimano SL-RV200-6R, 6sp, gripshift

Dérailleur arrière: Shimano TZ-500, 6sp, Direct mount

Pédalier: Alloy 3pc, 140mm, 28T Narrow Wide

Jeu de pédalier: Sealed bearing, ST 68mm

Cassette: Shimano MF-TZ500-6, 14-28T, 6sp, Freewheel

Chaîne: KMC Z6

Brakes

Frein avant: Tektro Aries, Resin pads, Mechanical Disc

Disque avant: 160mm, 6-Bolt

Frein arrière: Tektro Aries, Resin pads, Mechanical Disc

Disque arrière: 160mm, 6-Bolt

Leviers de Frein: Tektro Aries alloy Jr. Levers w/reach adjust

Composants

Guidon: Alloy Jr. Riser, 600mm, 30mm Rise

Potence: Alloy 40mm Length, 31.8mm Clamp

Tige de Selle: Norco Alloy 27.2mm, 250mm length

Jeu de direction: External Cup Ball Bearing, 1-1/8" EC 34

Entretoises de jeu de direction: 1x10mm , 2x5mm

Selle: Norco Jr XC, Steel Rail

Poignées/guidoline: Norco Youth, 115mm Length

Pédales: Jr. MTB Flat, 9/16"

Collier de tige de selle: Norco Alloy Bolted, 31.8mm ID

Roues

Moyeu avant: Formula DC-1420 , 9x100mm QR, 28h, 6-bolt

Moyeu arrière: Formula DC-31R-7S, 9x100mm QR, Freewheel, 28h, 6-bolt

Jantes: Aluminum DW, 28h, 24" MTB

Pneu avant: CY Trail, 24x2.25", Wire

Pneu arrière: CY Trail, 24x2.25", Wire
