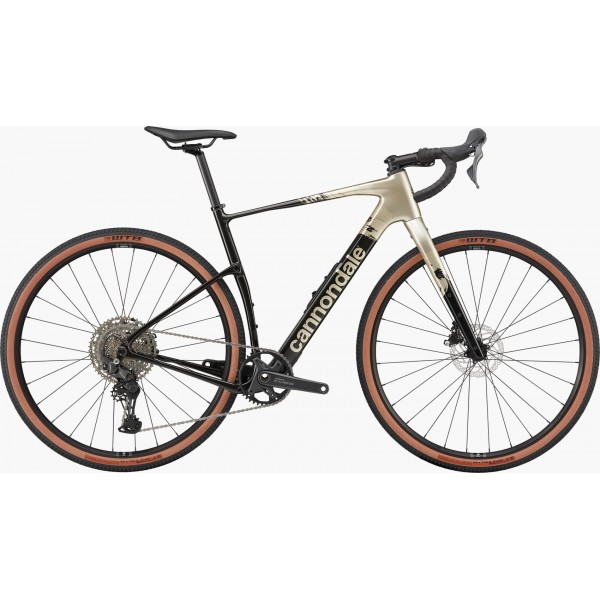

Cannondale Topstone CRB 4

CA$3,999.00
Size
Quantity

Cue up some serious gravel performance. With its bump-smoothing KingPin carbon frame, Shimano CUES U6000 1x11-speed shifting, CUES hydraulic disc brakes, gear mounts and 700x45mm tires, this rig is ready for gravel-riding, bikepacking or backroad exploring. Confidence comes standard.

Frameset

  • Frame
    Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube StashPort, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts
  • Fork
    Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
  • Headset
    Acros IS52/40 ICR

Drivetrain

  • Rear Derailleur
    Shimano CUES U6000, Shadow RD+, 11-speed
  • Shifters
    Shimano CUES U6030, 11-speed
  • Chain
    Shimano LG500, LinkGlide, 11-speed
  • Crank
    Shimano CUES 6030, 40T: 165mm (47cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm)
  • Rear Cogs
    Shimano CUES LG400, 11-50, 11-speed
  • Bottom Bracket
    Shimano BSA 68

Brakes

  • Brakes
    Shimano CUES RS405 hydraulic disc, 160/160mm RT30 rotors
  • Brake Levers
    Shimano CUES U6030 hydraulic disc

Wheels

  • Rims
    WTB ST i25 TCS, 28h, tubeless ready
  • Spokes
    Stainless Steel, 14g
  • Tire Size
    45
  • Wheel Size
    700c
  • Hubs
    Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm
  • Tires
    WTB Riddler TCS Light, 700x45c, tubeless ready

Components

  • Handlebar
    Cannondale 3, butted 6061 Alloy, 16 deg flare, 120mm drop: 400mm (47cm), 420mm (51-54), 440mm (56-61cm)
  • Stem
    Cannondale 3, 6061 Alloy, 31.8, 7°: 70mm (47-51m), 80mm (54cm), 90mm (56-58cm), 100mm (61cm)
  • Grips
    Cannondale KnurlCork, 2.7mm
  • Saddle
    Selle Royal SRX Open, 148mm
  • Seatpost
    Cannondale 3, 6061 Alloy, 27.2x350mm

Extra

  • Extra 1
    Large StashBag downtube storage bag, tubeless valves
