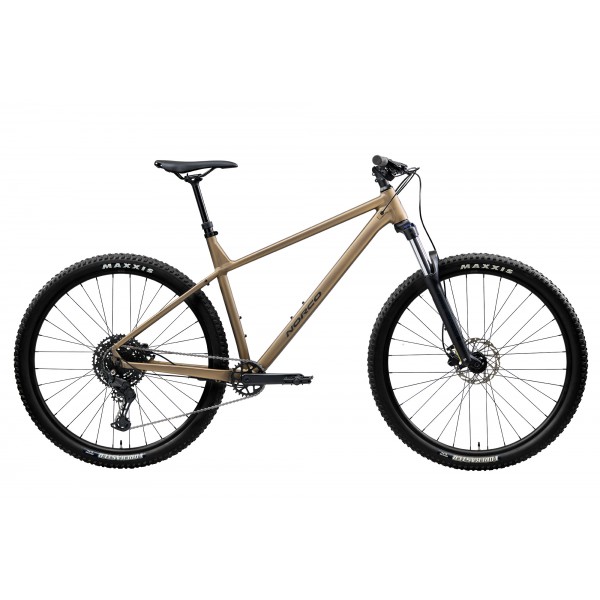

Norco Storm 120 2025

Frame

• Frame: Aluminum, Smooth Welding, 10x135mm QR, Tapered HT
• Fork: SR Suntour XCM32LO w/ lockout, 120mm, 46mm offset, 15x100mm

Drivetrain

• Rear Shifter: Shimano Cues SL-U6000-10R, 10sp
• Rear Derailleur: Shimano Cues RD-U6000, 10sp, GS
• Crankset: Prowheel Alloy, 30T, 170mm (S-M), 175mm (L-XXL)
• Bottom Bracket: Cartridge, ST 73mm, 113mm axle length
• Cassette: Shimano Cues CS-LG300-10, 11-48T, 10sp
• Chain: KMC Cues XGlide 9/10/11

Brakes

• Front brake: Tektro HD-M275, resin pads
• Front disc: Tektro. 160mm, 6-bolt
• Rear brake: Tektro HD-M275, resin pads
• Rear disc: Tektro. 160mm, 6-bolt
• Brake Levers: Tektro HD-M275

Components

• Handlebar: 6061 Alloy DB, 750mm (S) / 780mm (M, L, XL, XXL) 30mm rise
• Stem: Alloy 50mm Length, 31.8mm Clamp
• Seatpost: X-Fusion Manic LC, 31.6mm, 100mm (S), 125mm (M, L/XL/XXL)
• Headset: Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
• Headset Spacers: 3x10mm
• Saddle: Norco XC, Steel Rail
• Grips/Tape: DDK Lock-On, 139mm length
• Pedals: Nylon Flat Pedals
• Seatpost Clamp: Norco Alloy Bolted, 34.9mm ID

Wheels

• Front Hub: Formula DC51, 15x100mm, 32h, 6-bolt
• Rear Hub: Formula DC-1422, 10x135mm QR, HG, 32h, 6-bolt
• Rims: DP 27 Rims, 27mm ID, 32H
• Rear Tire: Maxxis Forekaster, 29x2.35" (27.5x2.35" size S), Wire
• Rear Tire: Maxxis Forekaster, 29x2.35" (27.5x2.35" size S), Wire
• Spokes/Nipples: Stainless Steel, 14g

Weight

• Weight: 14.59 kg (32.1 lbs)
